Powder packaging is an intelligent machine for quantitative packaging of various powder materials. Its function is to accurately package the materials according to the set weight and bag length to meet your sales needs, improve your work efficiency, save time and cost, and obtain greater benefits. Next, I will give you a more comprehensive introduction to the composition, working principle, types and advantages of the powder packaging machine.

Composition of powder packaging machine

1. Feeding device:

The material is conveyed by hoppers, screw conveyors, etc.
For example, the hopper device, put the material in the hopper, and the machine will feed it according to the set weight.

2. Measuring device:
The key to ensuring the accurate weight of the packaged bag
For example, when you set the weight to 10g for feeding and packaging, the powder packaging machine will receive the instruction and start weighing 10g through the scale inside the machine.
Different machines have different metering methods, including screw weighing, volumetric weighing, and weighing metering. The example I gave is the weighing metering method.

3. Filling device
After the powder packaging machine is fed and metered, the machine will be connected to the dispensing machine below through the discharge port for discharging, and the material will enter the former.
Including filling tubes and filling heads.

4. Bag making device
The material enters the bag through the former, and then the sealing part of the packaging machine will start to seal the roll film. Common seals include iron seals and aluminum seals.

Different powder packaging machines are different, but the main components are feeding, metering, filling, and bag making. There are also control devices, PLC panels, and motors. The machine's bracket serves as an auxiliary and supporting function, which together constitute the powder packaging machine and ensure the operation and stability of the machine. By introducing the composition of the powder packaging machine, I think you have a clearer understanding of the machine. Next, I will introduce the working principle of the packaging machine in detail.

Working principle of powder packaging machine

The material enters the hopper of the unloading device and begins the first step of preparation for packaging. It is weighed by different machines and different measuring methods. The weighed material will pass through the unloading port to the former and the bag. The machine will wait for the unloading time according to the length of the bag and the weight of the material, and then seal and package it with the sealing device.

Types of Powder Packaging Machines

Different types of machines are used for different materials and business models.

Small vertical  powder packaging machine: This type of packaging machine is relatively small and low-cost compared to large packaging machines. The packaging range is 0-100G, suitable for small entrepreneurs and places with space requirements.

Screw metering powder packaging machine: The powder is packaged by screw, which is more suitable for materials with good fluidity. The packaging range is packaged according to the type of machine. The small screw metering is 1-500g, the medium screw metering is 50-200g, and the large screw metering is 1 kg-10 kg.

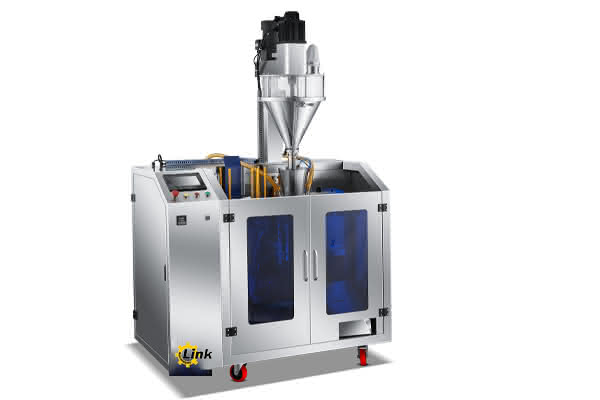

Bag-type powder packaging machine: This is through the first made bag, which can automatically open the bag and package it in a fixed position, which is different from the ordinary packaging machine that first puts the material in and then packs it.

The packaging range of different types of packaging machines is inconsistent, and the functional requirements are inconsistent. Customers can choose according to their own needs. We provide free customization services to customize the most suitable machine for you according to your needs.

Advantages of packaging machines

1. Accurate weighing method: The powder packaging machine has an accurate weighing system that can complete this work accurately and efficiently. You only need to put the material in the weighing bucket and set the weight you want. The packaging machine will automatically weigh it for you to avoid the error of gram weight.

2. High efficiency of production ：The powder packaging machine can automatically complete unloading, weighing, and packaging. It has high work efficiency and can produce nearly hundreds of packages per hour.

3. Simple and easy operate： Only simple training is required to operate. The powder packaging machine is equipped with a simple and easy-to-understand panel. Just press the button to set the program, and the machine will work automatically.

4. Support customized different packaging： The powder packaging machine can customize different sizes and styles according to your ideas, whether it is round or special shape, back seal, three-side seal, etc. We have professional engineers who can customize the machine for you.

Application of powder packaging machine

Powder packaging machines are designed for packaging various types of powders and are widely used in various industries.

In the food industry:

Milk powder, coffee powder, flour, sugar powder, various seasoning powders, pepper, chili powder, etc.

In the medical industry:
It can package different medicinal powders, nutritional powders and Chinese medicine powders, as well as disinfectant powders and hemostatic powders for patients' convenience

In the chemical industry:
Chemical products such as laundry powder, fertilizer powder, pesticide powder, etc.

In the beauty industry:

Eye shadow powder, blush powder, and loose powder can all use powder packaging machines.

Therefore, powder packaging machine is an indispensable packaging machine for people to pack powder. It has a wide range of applicable industries, accurate weighing, high production efficiency, simple and easy operation, saving labor and time costs, and can be customized according to your needs. Are you attracted by the powder packaging machine after seeing this? If you need to order a packaging machine, please contact us. Our engineers will serve you and provide you with professional services and preferential prices.
