Item NO.:
BZ005Product Origin:
ChinaShipping Port:
XiamenLead Time:
7-14dayCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionEmail: Molly@xmlk-machine.com
Whatsapp/Wechat: +8618150150881

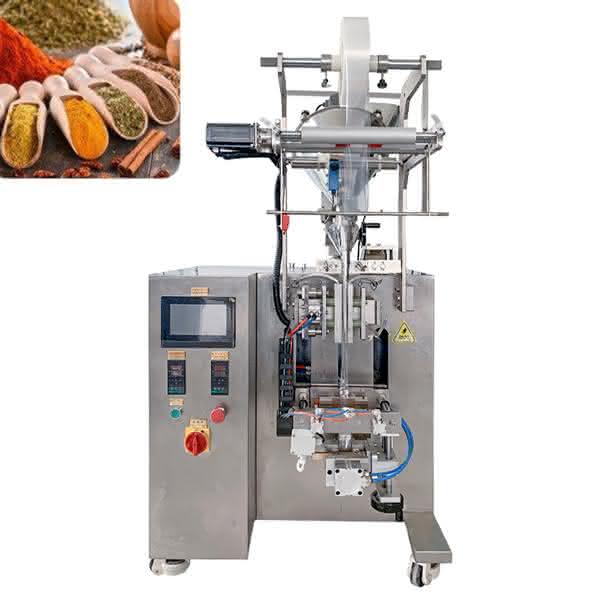

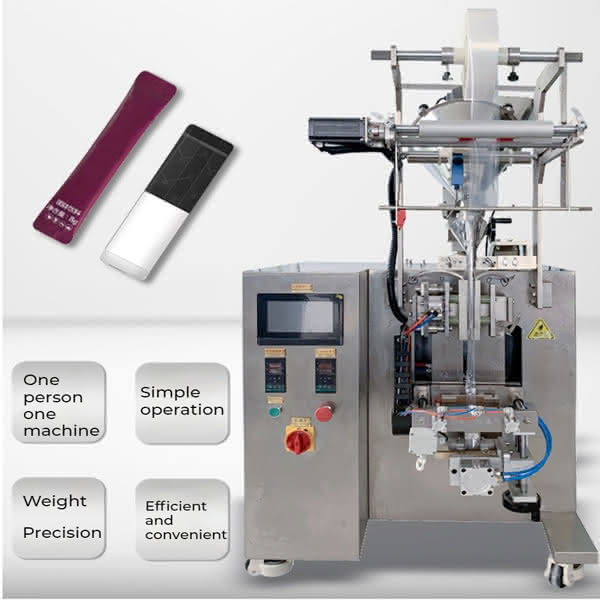

High speed automatic powder packaging machine
Features of high-speed automatic powder packaging machine:

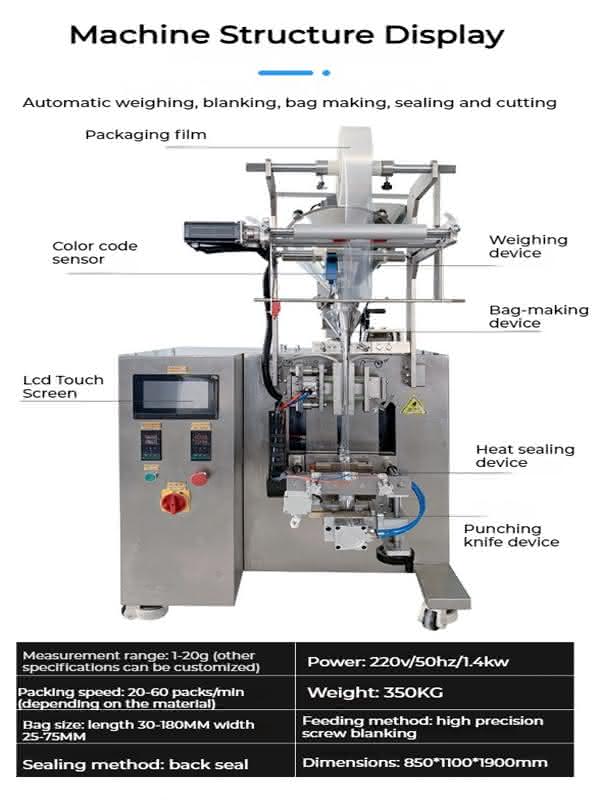

1. It can automatically complete bag making, metering, feeding, sealing, slitting, counting, and can be configured with printing batch number and other functions according to customer requirements.

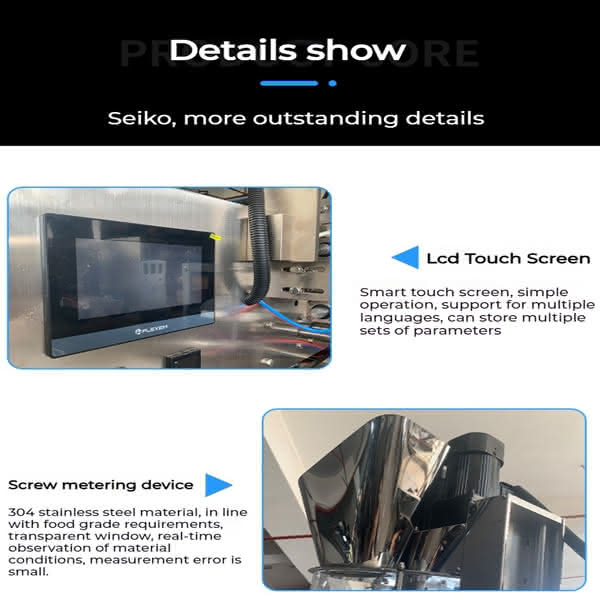

2. Chinese and English touch screen operation, simple and intuitive operation, PLC control system, more stable operation, servo motor controls bag length, bag length setting is convenient and stable, stable performance, easy adjustment, accurate detection. Intelligent temperature controller PID automatically adjusts temperature control to control the temperature error range within 1°C.

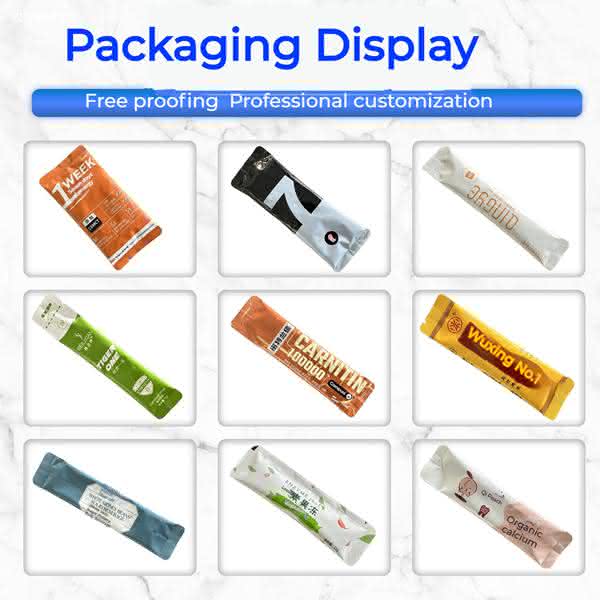

3. Packaging materials: polypropylene/polyethylene, aluminum foil/polyethylene, polyester/aluminum-plated/polyethylene, nylon/reinforced polyethylene, paper/polyethylene, etc.
Bag size |
Width: 25-75MM Length: 30-180MM |
Feeding method |
Vertical screw |
Packing speed |
20-60 bags/min (depending on the material) |
Sealing method |
Back seal |
Measuring range |
1-20g |
Power supply |
220V/50HZ/1.4KW |
Air source |
0.8mpa |
Air consumption |
0.6m3/min |
Machine weight |
350KG |
Overall dimensions |
850*1100*1900mm |
