Product Description

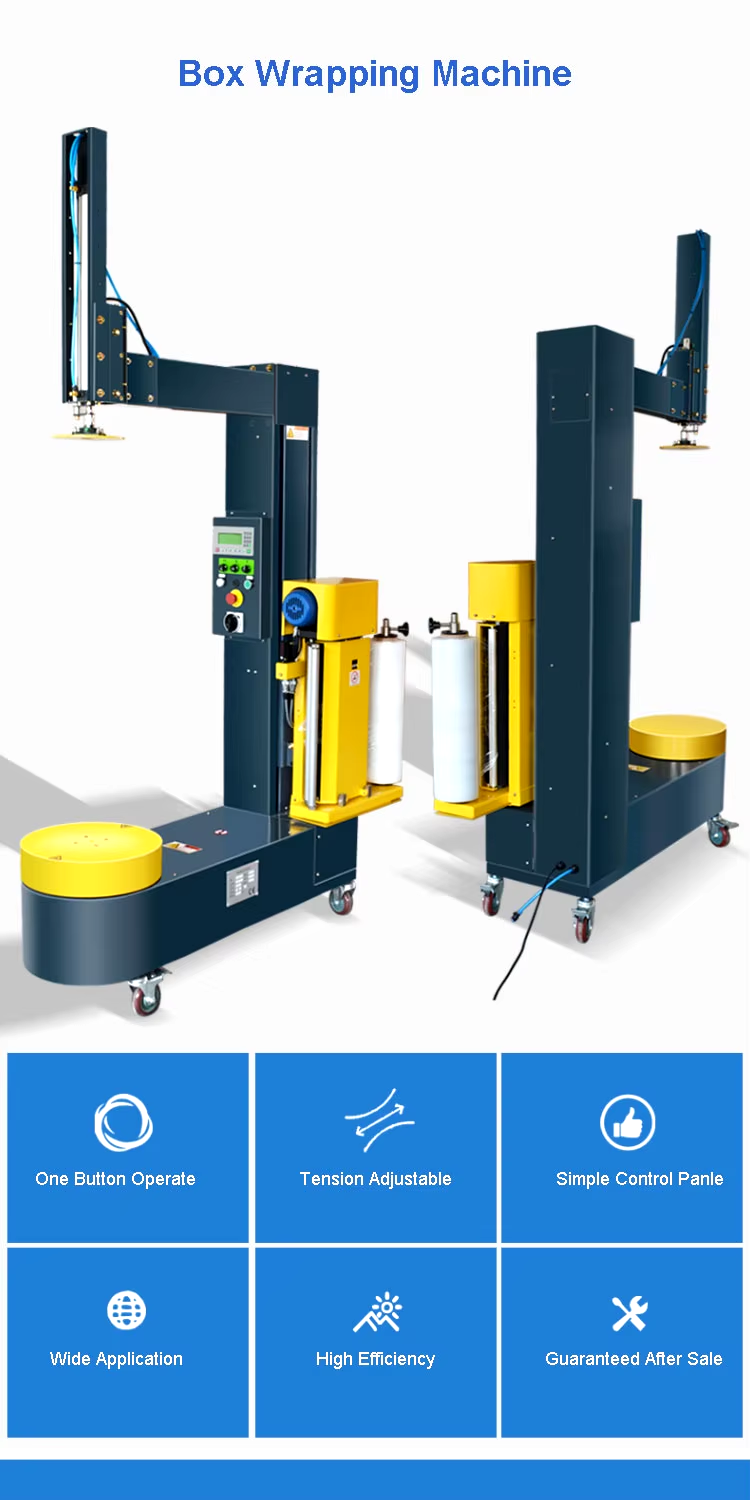

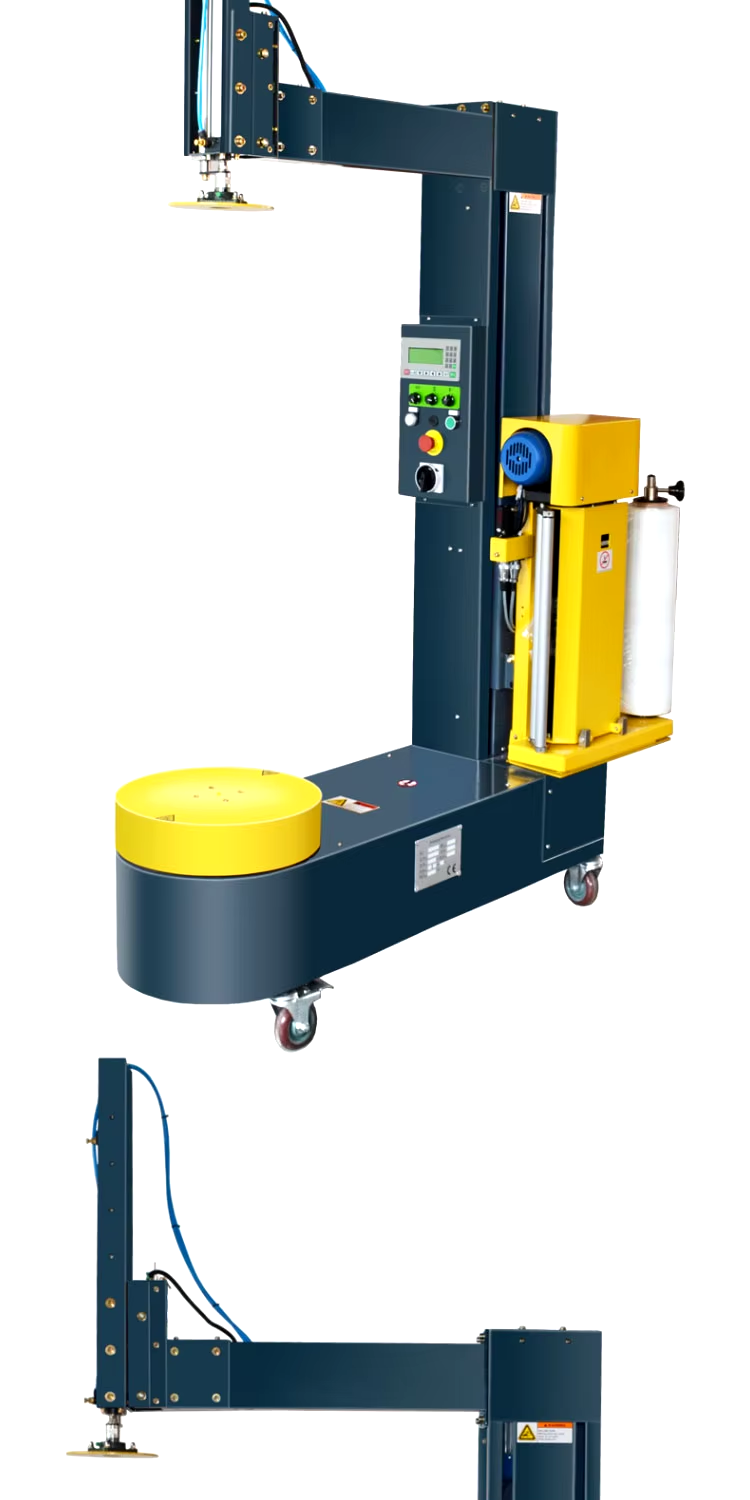

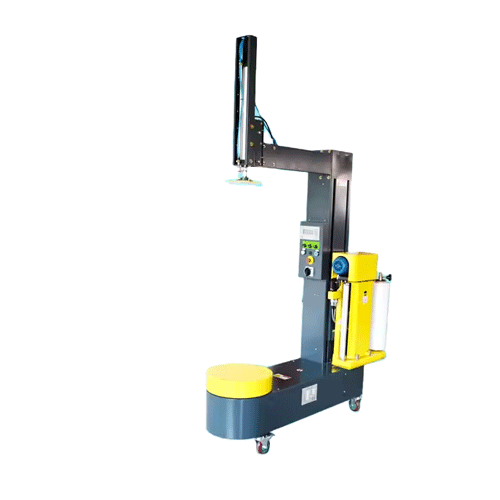

The Packer 800 B model is a semi-automatic winding machine for square or rectangular boxes. Equipped with a 7.2 "color touch screen control panel, which, in a very simple and practical way, allows to manage the programs and set the packaging parameters. Machine managed by PLC.
Item NO.:
CRZBZ003Product Origin:
ChinaShipping Port:
XiamenLead Time:
7-14dayCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionEmail: Molly@xmlk-machine.com
Whatsapp/Wechat: +8618150150881

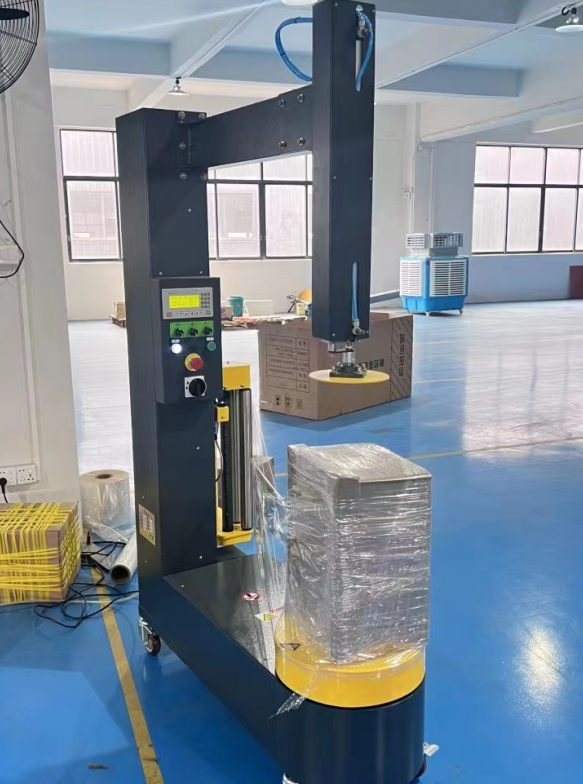

Machine working video
Features
1. Machine structure for painted steel sheets
2. Film transport by drive chain
3. Maximum product height 1000 mm
4. Pneumatic top press

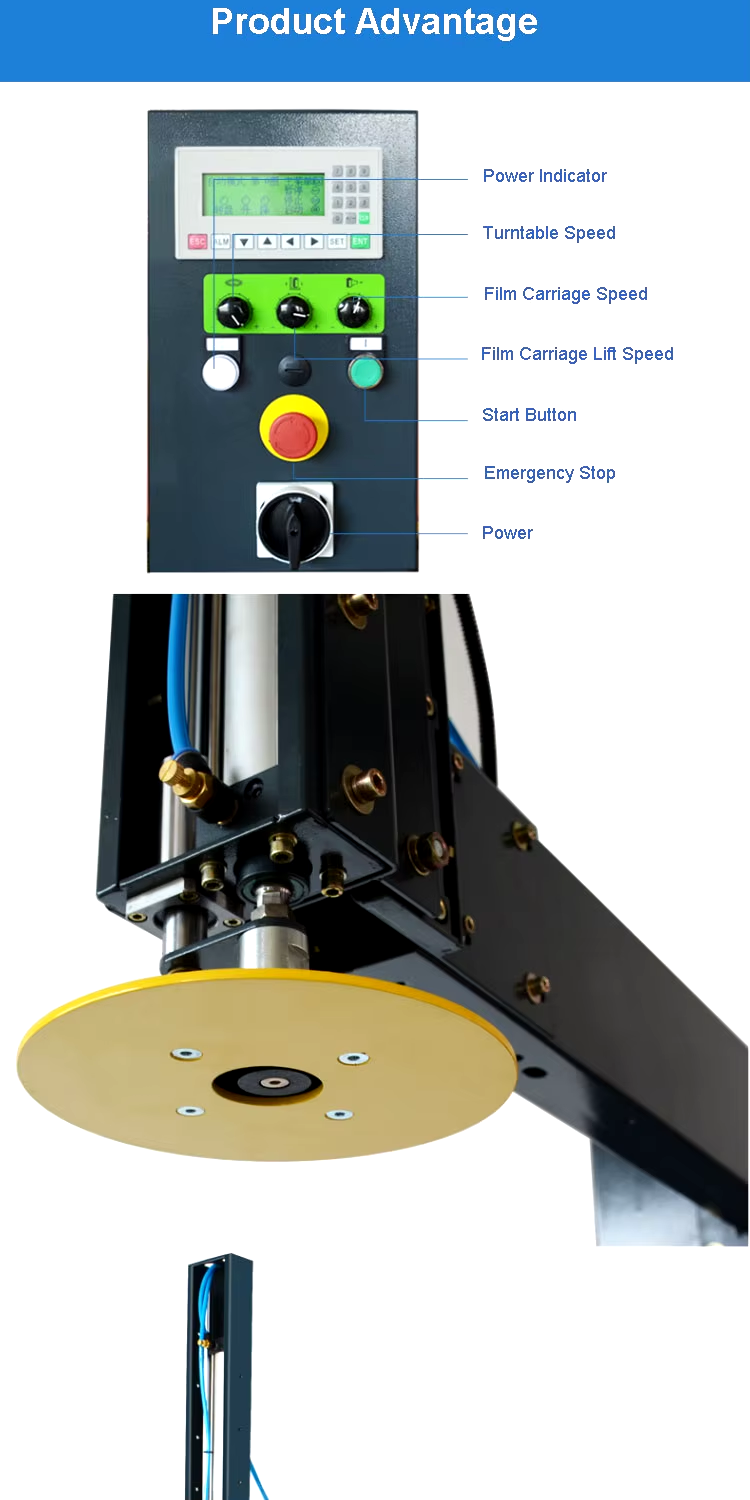

5. Machine controlled by PLC and color touch screen 7,2"
6. Safety stop at the bottom of the carriage in accordance with CE regulations
Model | FG800B |
Packing method | Power pre-stretching |
Air pressure | 0.4-0.6Mpa |
Power supply voltage | AC220/110V single phase 50/60Hz 1.0KW |
Turntable speed | 0 ~ 20 rpm |
Diameter of turntable | 400mm, 600mm |
Cylinder | 500mm |
Capacity | 60kg |
Machine size | Length 1470×Width 460×Height (1860-2260)mm |
FAQ
A: Yes, we can customize the machine according to your requirements.
