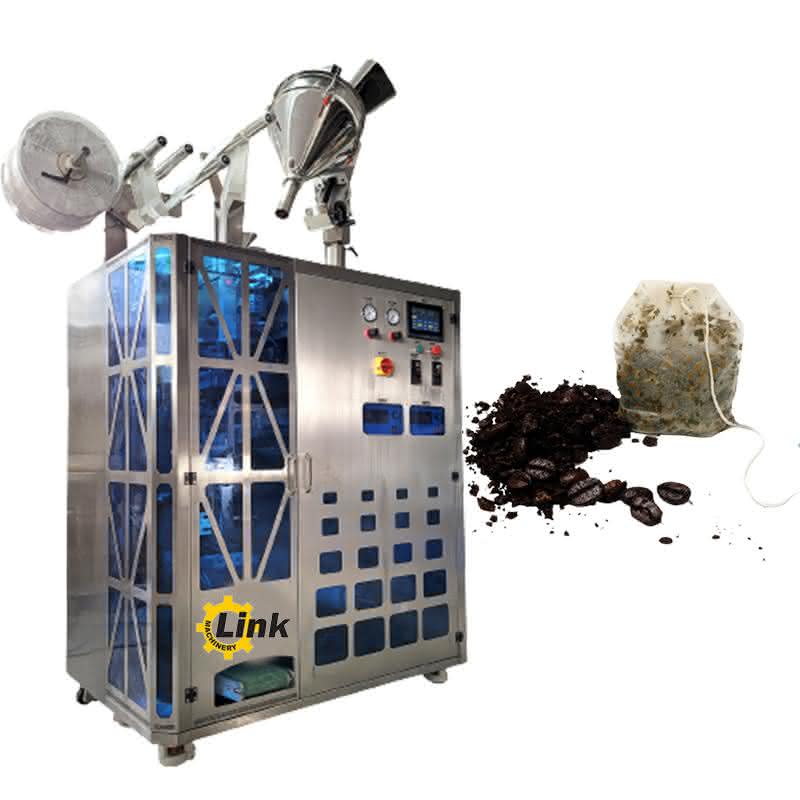

Automatic Drip Bag Coffee Packing Machine envasadora de cafe Filter Bag Coffee Sachet Packaging Machine

1. The outer sealing paper is controlled by a stepping motor, the bag length is stable and the positioning is accurate

2. Using PID to adjust the temperature controller, the temperature control is more accurate

3. Adopt PLC to control the movement of the whole machine, man-machine interface display, easy to operate

4. All accessible material parts are made of SUS304 stainless steel to ensure the hygiene and reliability of the product

Item NO.:
BZ-001
Order(MOQ):
1 SET
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
7-14day
Compliance:
CE Certified
Warranty:
One years limited warranty with lifetime technical support
Payment:
L/C D/A D/P T/T Western Union

Email: Molly@xmlk-machine.com
Whatsapp/Wechat: +8618150150881

Inquire now

Categories

New Products

Product Detail

Click the text and leave a message to get a catalog

Coffee bag packing

Technical specifications
Outer bag size	L:85~120mm,W:75~100mm (Film width 200mm, Bag size: 120*100mm)
Inner bag size	L:50~75mm, W:50~90mm (Filter paper width 180mm, Bag size: 90*75mm)
Packing speed	40~70 bags/min.
Filling range	5~15g; accuracy:±0.1g/bag
Inner packing material	Filter paper; Nylon filter mesh
Outer bag material	Kraft paper/aluminum coating; PE/aluminum coating; PE film
Sealing method	Ultrasonic sealing and cutting for inner bag; Outer Bag by heat Sealing.
Power	Single phase, 220V, 50HZ, 1.5KW
Machine size	12009001900mm
Machine weight	600kg

The advantages of the machine
1. Smart screen Adopt PLC touch screen control, configure equipment failure alarm system.Neat and beautiful.
2. Vacuum feeding device without repeated manual feeding, easy to use and improve productivity
3. Inner bag sealing structure Ultrasonic seal Use ultrasonic seal ,import from Korea,Beautiful and stable sealing.Vertical seal use ultrasonic,horizontal use heat seal.
4. Cutting & sealing parts High speed of fine and clean cutting and sealing bags. Positioned stop function avoides sticking blades and wasting materials.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.

Hanging Ear Coffee Tea Packing Machine
1. The outer sealing paper is controlled by a stepping motor, with stable bag length and accurate positioning
2. Using PID to adjust temperature controller, temperature control is more accurate
3. Using PLC to control the action of the whole machine, the man-machine interface display, easy to operate
4. All accessible material parts are made of SUS304 stainless steel to ensure the sanitation and reliability of the product
5. Part of the working cylinder adopts original imported parts to ensure its accuracy and stability
6. The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing,etc.
7. Ultrasonic and heat-sealing forms can achieve linear incisions, save the filling space inside the ears, and reach 12G packaging capacity
8. Ultrasonic sealing is suitable for cutting all non-woven packaging materials, with high cutting success rate
9. The equipment can be equipped with nitrogen filling device, date printing device and stirring device, etc.

Packing Coffee

Coffee Packing Machine

Standard Features

1.The machine is suitable for green tea, black tea, scented tea, coffee, Chinese tea, health tea, herbal tea, granule.

2.Outersealing paper is controlled by the stepper motor,stable bag length and accurate positioning

3.The machine can automatically finish

the load, measuring, bag making,sealing, cutting, counting, finished product conveyor, and other functions.

4.Adopt the importedultrasonic sealing, use the electronic scale metering to cutting-stock, perfect sealing,cutting-stock accuracy

5.Packing material: filter paper,thread,composite membrane

Coffee Packing Machine

Drip Coffee Bag Packing Machine

Packaging Machine

FAQ:

Q: are you a factory or a trader?

A: we are a manufacturer with a history of 25 years and have our own production team and after-sales team.

Q: how to place an order?

A: please confirm all details with us before you buy the machine, and we will make a contract for you. We support L / C, t / T, PayPal, Western Union, and so on stamp machine.

Q: how will this machine be transported to my country? Can it be delivered to your door?

A: Yes, we can ship the machines by sea, air and express.Transportation costs vary according to different modes of transportation.

Q: how to make the machine work normally after receiving it?

A: we will provide the installation video, operation manual and online support of the machine. You can install the machine according to our steps. We have overseas engineers in some

Q: what if the machine does not work or fails during use?

A: each machine must pass the packaging test before leaving the factory. If there is any problem with the machine, please contact us in time. We have a professional technical after-salesteam to help you solve the problems of the machine.

Q: what is machine quality assurance?

A: one years limited warranty with lifetime technical support

Q: is the machine well packed and easy to damage?

A: we will use foam + carton + export wooden box to pack large machinery to avoid damage during transportation.

Q: do you accept customization?

A: Yes, we can We customize the machine according to your requirement
