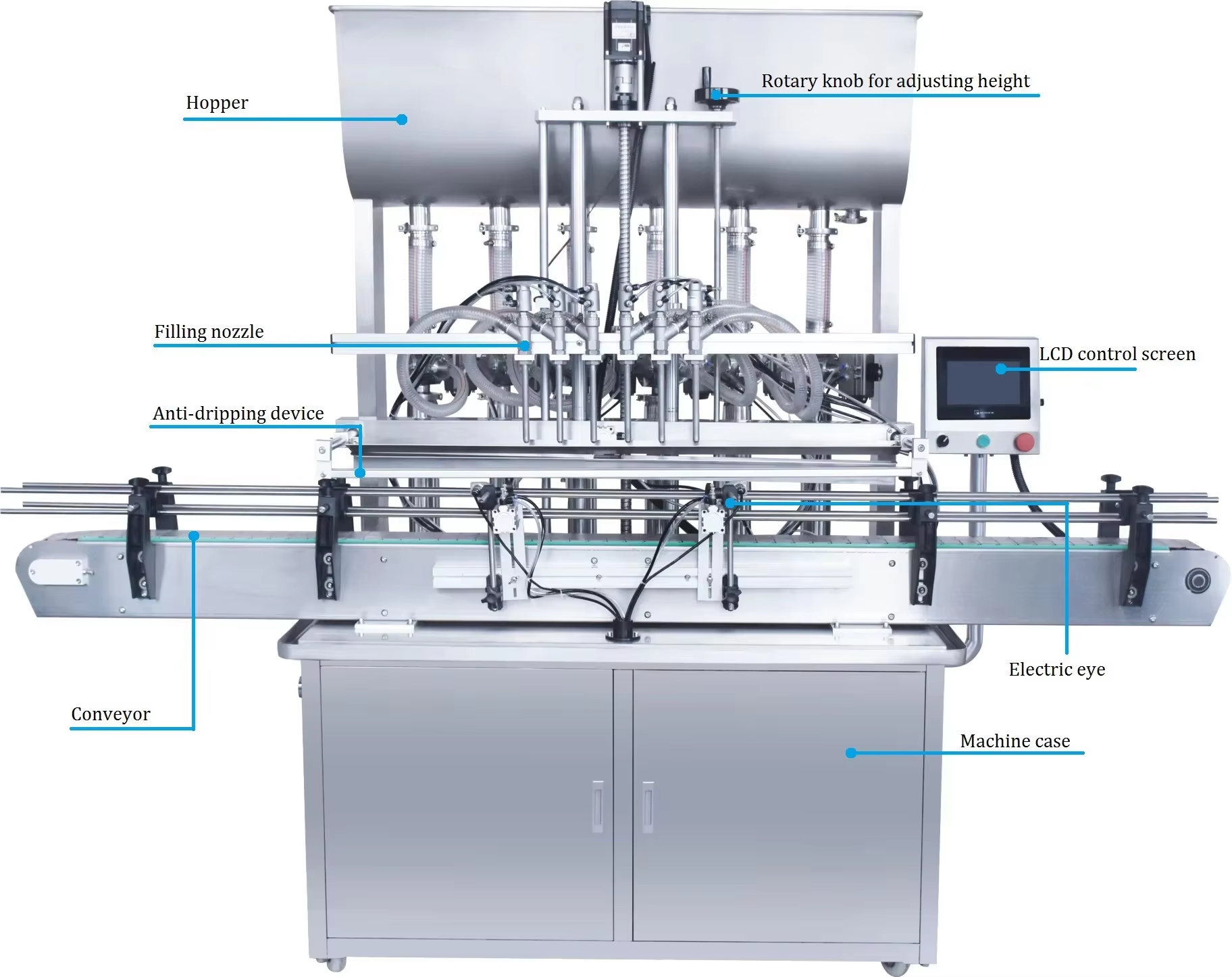

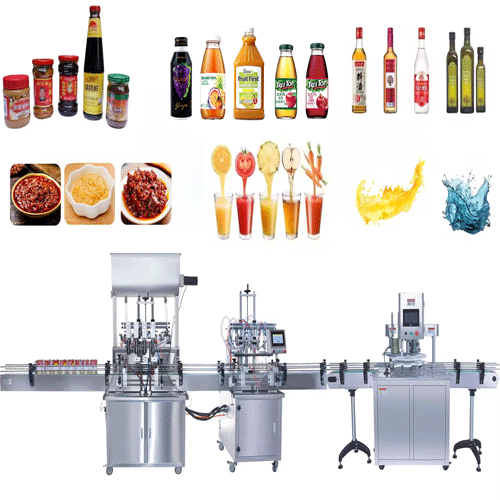

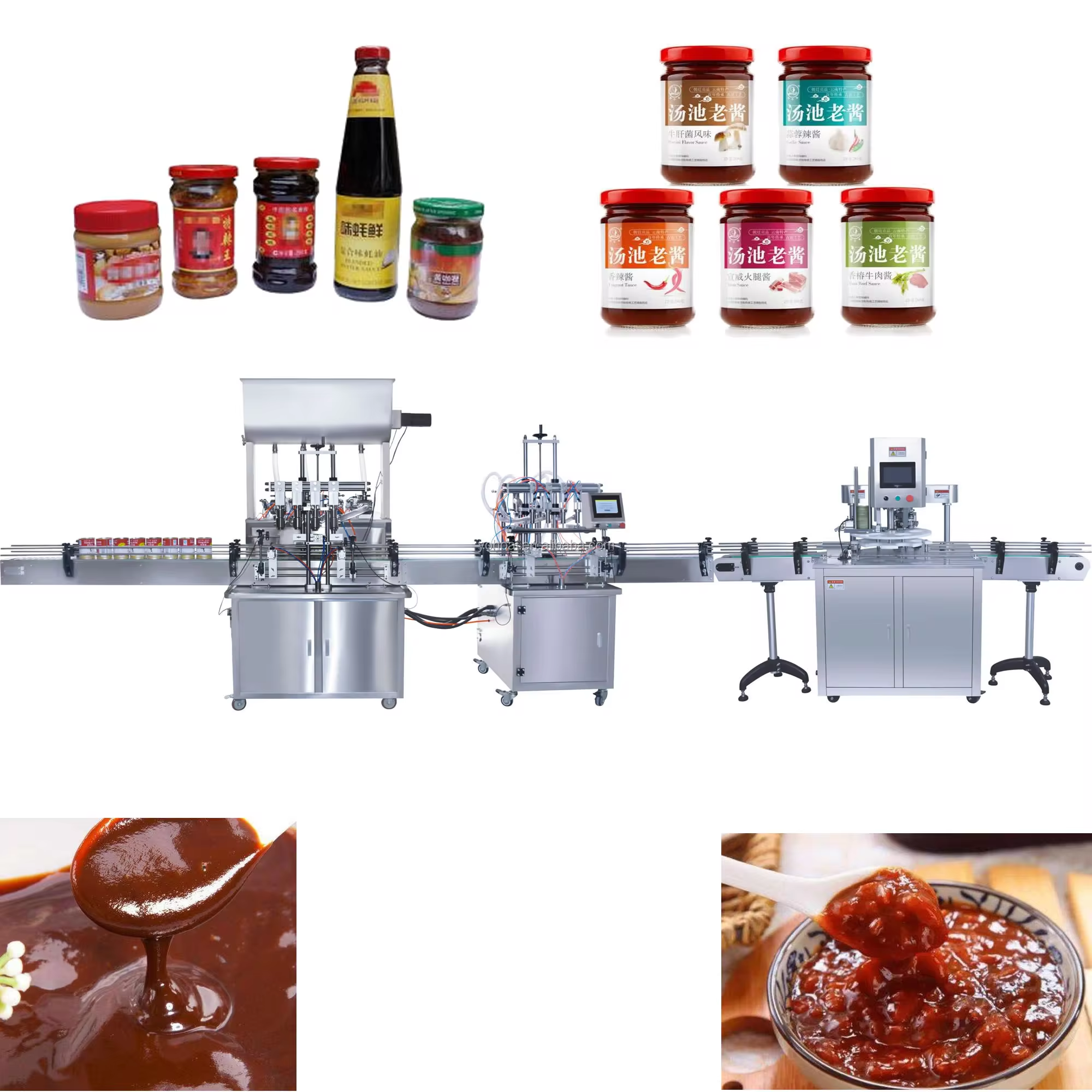

Four nozzle automatic sauce filling machine+automatic tanker+automatic sealing machine

The working principle of the filling machine The bottle unscrambler arranges the bottles into rows and then enters the position of the aliquot tray in turn, passes through the gap of the aliquot tray, and when the bottle stops, the filling head drops into the bottle for filling, filling 2 bottles at a time. The halving plate moves intermittently. Each time the turntable rotates through 2 stations, two bottles are sent forward, and then it stops to enter the gap of the halving plate.

The lids are arranged in rows by the electromagnetic oscillation hopper, and the mouths all go up into the cover channel. In the rail, the lower mouth of the falling cover rail is directly opposite to the center of the gap of the dividing plate. After the bottle enters the gap of the dividing plate, it rotates with the dividing plate, so that the bottle mouth of each bottle can take away the bottle at the lower end of the bottle cover rail. Cap and put it on the mouth; when the bottle with the cap on enters the sealing position with the rotation of the aliquot disk, the sealing seat will drop, and the cap and the bottle mouth will be screwed tightly. The sealed bottle will be sent to the bottle through the rotation of the aliquot disk In the bucket.

Automatic turntable capping machine The capping machine is mainly composed of cap sorting, capping, bottle feeding, capping, lifting, conveyor belt, and rejection mechanism. Bottle feeding is controlled by the human-machine interface. The capping speed is fast, up to 300 bottles/minute. It has strong adaptability and can tighten caps of different shapes. It has the advantages of good tightness consistency. One of its major advantages is that each transmission part is controlled by a separate motor, which is easy to adjust, durable and reliable. Other similar products use synchronous belt or sprocket transmission, which is easy to damage or not tight.

Core working principle: the bottle separating wheel separates the products and puts them on the conveyor belt, the sensor detects the product passing, and sends back a signal to the labeling control system. At the appropriate position, the control system controls the corresponding motor to send out the label and attach it to the product to be applied. At the label position, the product flows through the labeling device, the labeling drive drives the product to rotate, the label is rolled, and the attachment of a label is completed;

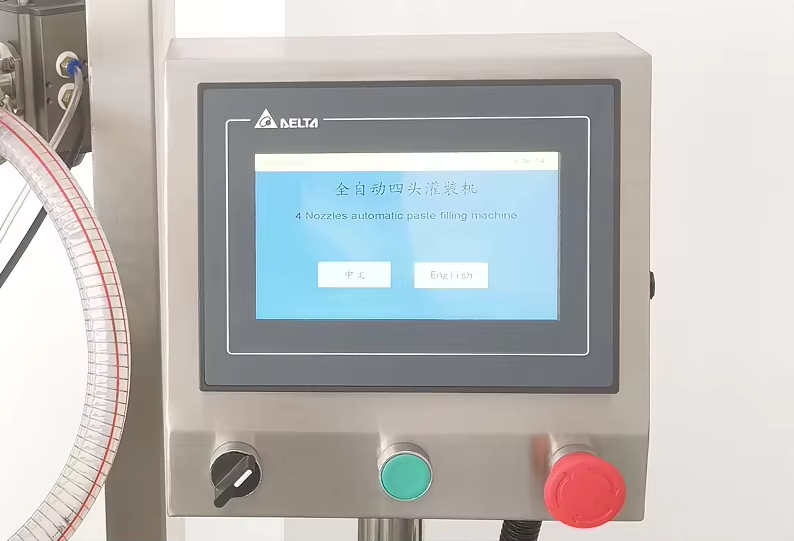

LCD control panel

Touch screen control panel with English version,this will be faster and easier when adjusting parameter.Each parameter can be controlled accurately according to operation,ensure the fling accuracy.

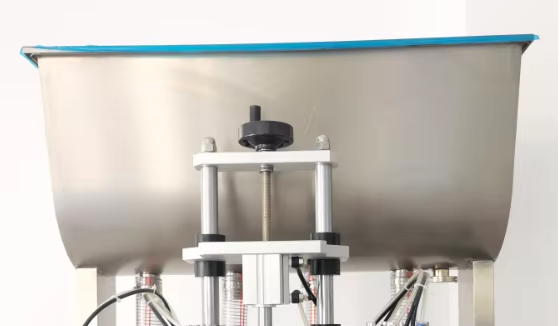

Hopper

Larger hopper. The hopper can be filled with more pastes. Reduce the workload and make the production work more convenient.

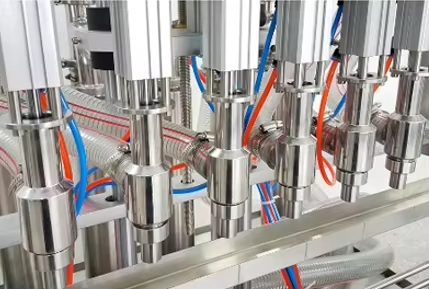

Filling nozzle

The filling head adopts anti-drip design. The filling head can move left and right up and down, which has a wider application range. Each filling head can individually set the weighing range.

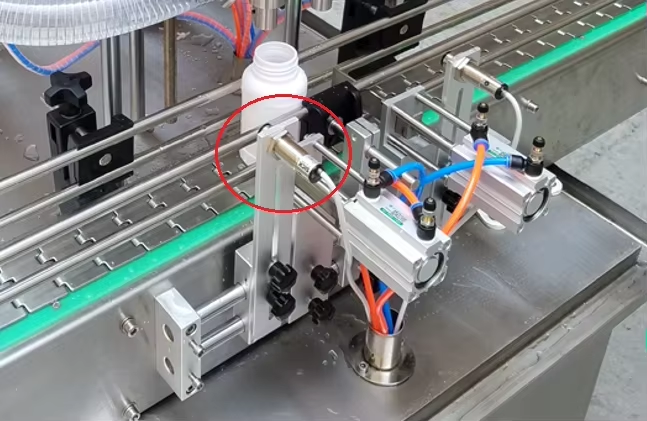

Photoelectric detection

Bottle check photoelectric. Check whether the bottle is poured or empty. Prevent waste. Protect the cleanliness of the workplace.

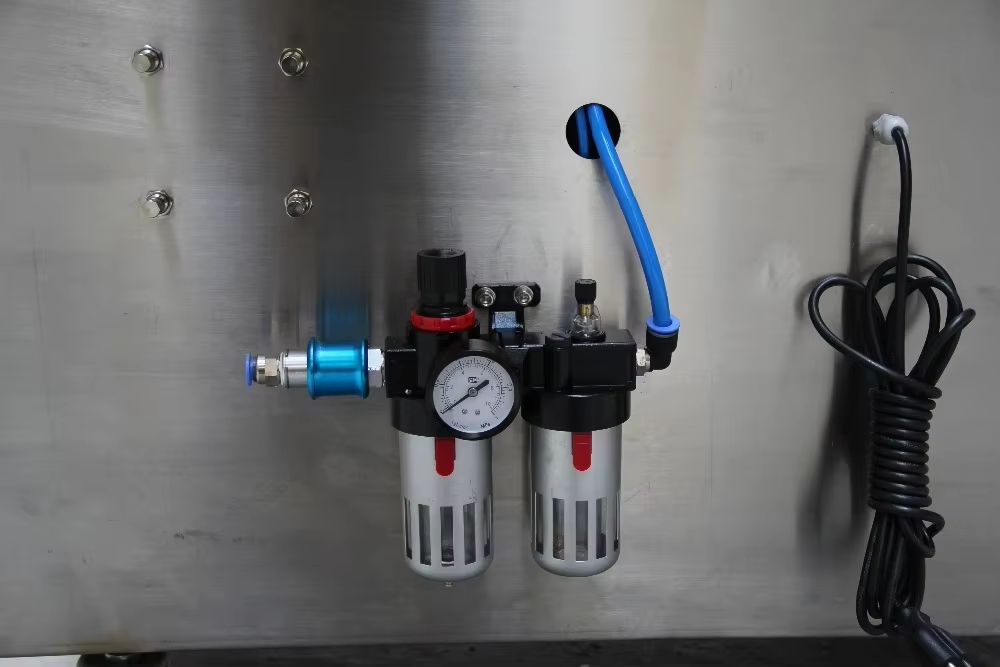

barometer

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Features Piston-type linear filling with high precision filling, easy installation and commissioning, cleaning and maintenance is simple, no dripping and so on. Contact with the material are made of 304 stainless steel (custom 316 stainless steel), all stainless steel rack, with clean and tidy,beautiful and beautiful appearance and so on. Using Taiwan PLC control, touch screen man-machine interface, the German sick light eyes,Germany FESTO, Taiwan Air Tac and other imported components, so that the filling machine has a stable performance, flexible operation of the outstanding performance.



Product Application

This series of liquid filling machines is suitable for daily chemical, food, oil, pesticide and other industries, and can fill different types of liquid paste products.
